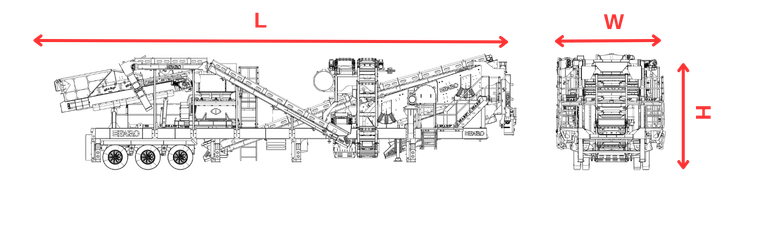

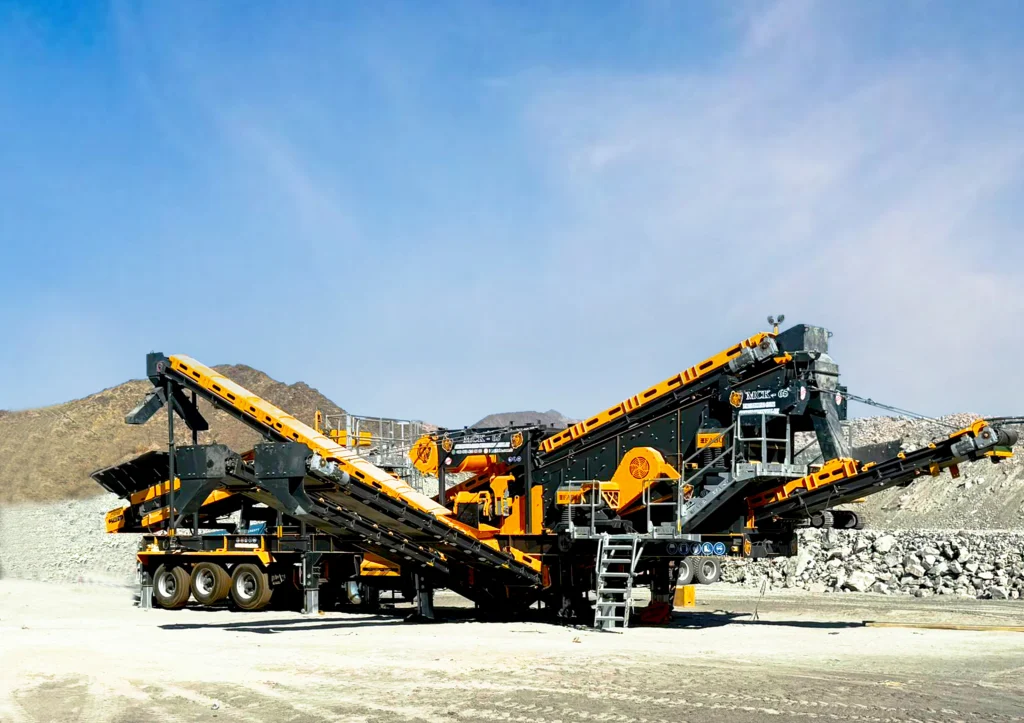

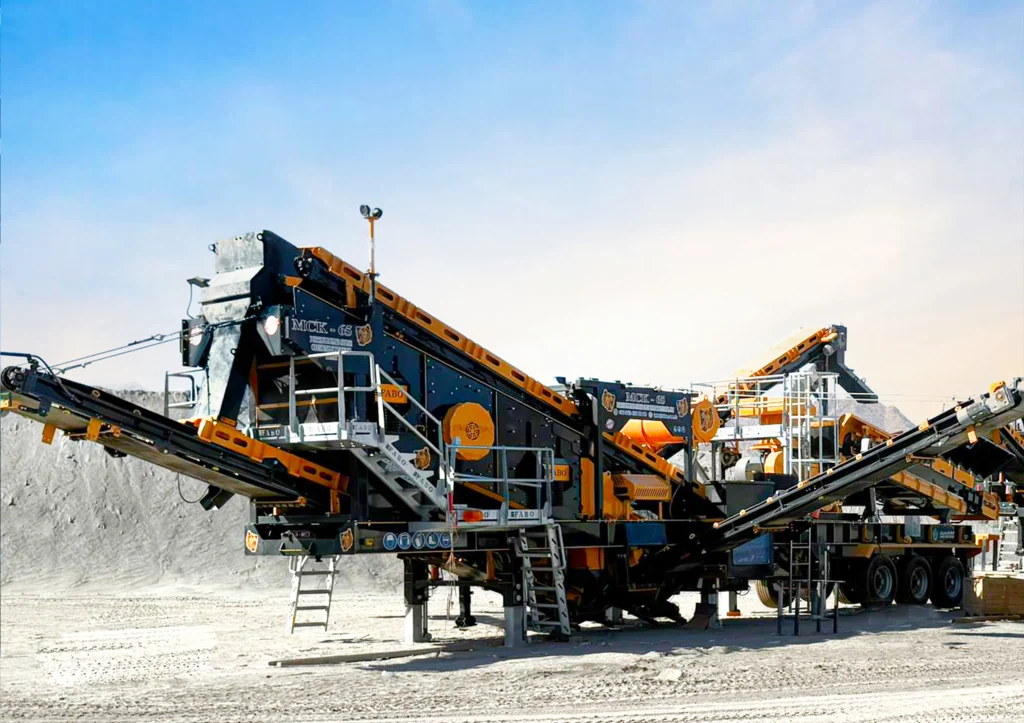

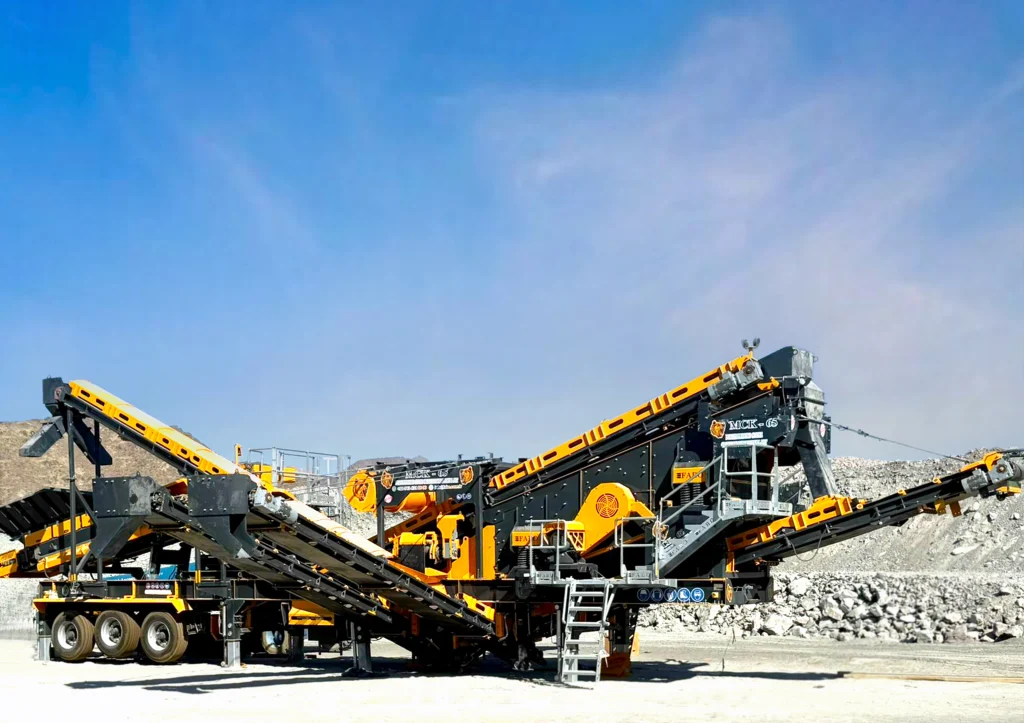

apron feeder

Belt Feeder

Belt
Feeder

flap-system

Coupled
Motors

Folding Type
Bunker Covers

Body
Protection Linings

The Belt Feeder is the system in charge of quickly sending the loaded products to the crusher for the crushing process.

The belt feeder, which has 2 motors and thus gains mobility, has a motor protection system. Thanks to this system, malfunctions that may occur as a result of overheating are prevented.

The working intensity of the Belt Feeder and the crusher is coupled with the automation system.

This feature works in two steps.

Step 1: If the density of the crushed product in the crusher is high, the amperage of the crusher rises, this rise is detected by the automation system and the bunker transfer stops. It prevents product accumulation in the crusher feeding chute. This feature prevents the crusher from being worn out.

Step 2: If the density of the crushed product in the crusher is low, the amperage of the crusher decreases. This decrease is detected by the automation system and bunker transfer increases. The feeding hopper delivers the products to the crusher faster. This feature keeps the production capacity at the maximum level.

cone crusher

Cone Crusher

cone crusher

CC-100
Cone Crusher

cone crusher

Spreader
Cover

cone crusher

150 mm
Feeding Opening

pinyon mili

Pinion
Shaft

The power transferred from the engine to the gear shaft is sent to the hub with gears. Thanks to the core and concave inside the crusher, it crushes the stones and breaks them into pieces.

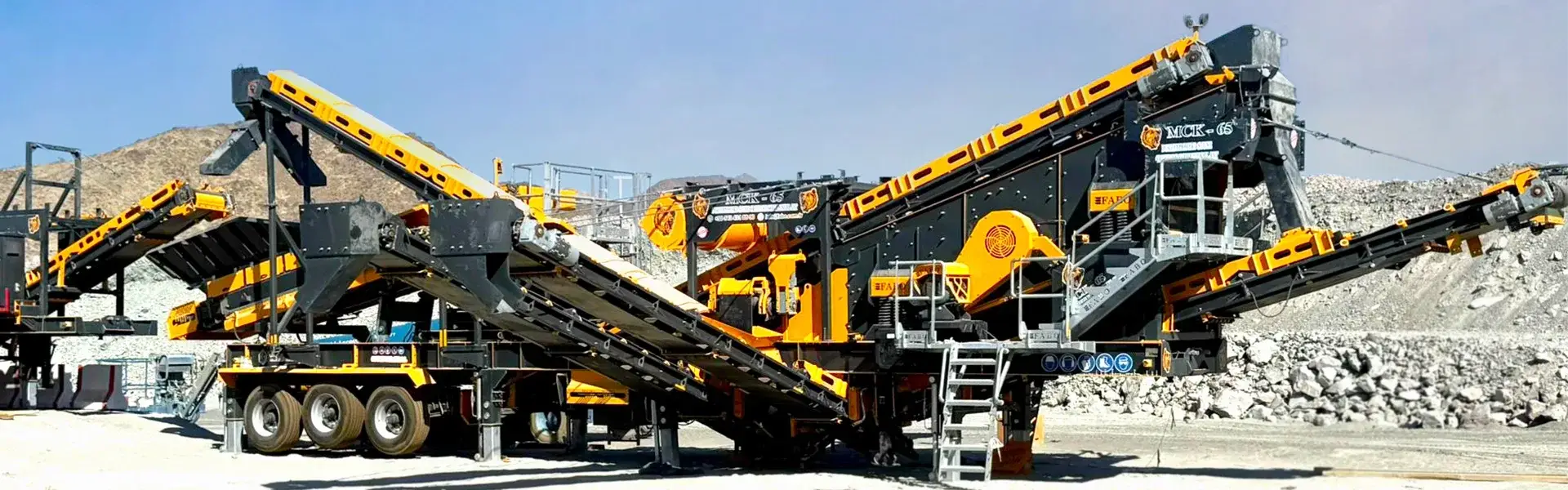

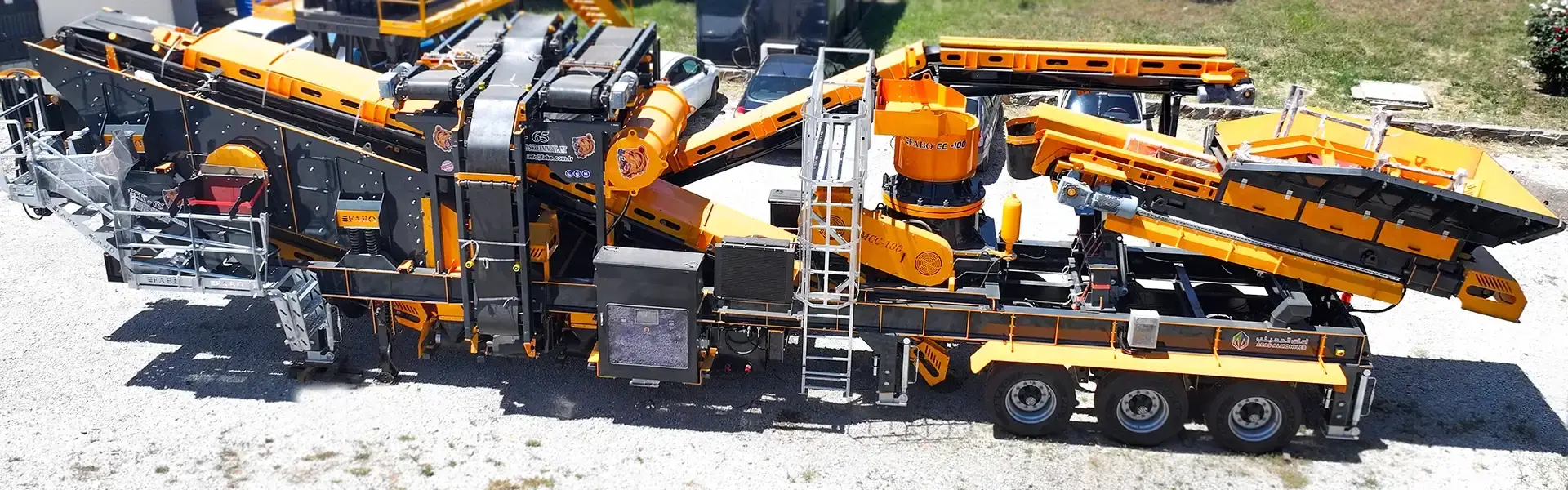

Standing out with its robustness and production capacity, the cone crusher enables the MCC-100 Mobile Cone Crusher to operate at maximum capacity thanks to its high rotor speed and robust gear structure.

vibrating screen

Vibrating Screen

vibrating screen

1300x4000 mm
Vibrating Screen

vibrating screen

Screen
Weight

vibrating screen

Durable
Screen Wires

vibrating screen

Durable
Steel Springs

Vibrating Screen separates the products crushed in cone crusher in the desired size and sends them to the stock area.

The screening dimensions of the Vibrating Screen are determined according to the customer’s request.

Vibrating screen, which gains the ability to vibrate with durable steel springs, can work uninterruptedly under the toughest working conditions.

Thanks to the screen wires that can be changed in a short time, maintenance, repair and replacement processes are completed in a minimum time.

flap-system

Flap System (Optional)

flap-system

Flap
System

Hydraulic
Arm

flap-system

Hydraulic
Piston

flap system

Flap Bottom
Groove

The flap system is a special system that allows the material broken in the crusher to be taken with the help of the front stock band before it is sent to the screen.

The plant disables the vibrating screen when it is desired to obtain a uniform product with the flap system.

The products are transferred to the flap system without being subjected to the screening process.

Flap system minimizes production time with its unique location just in front of the screen

conveyör belt

Stock and Return Belts

bant

Folding Type
Conveyor Belt

Belt
Traverses

Drive
Drums

flap-system

Coupled
Motors

Folding type feeding and return belts are vehicles that quickly send the product to the crusher or the stock area according to the dimensions of the product after the relevant product is screened in the screen.

With its foldable structure, conveyor belts minimizes the dimensions of the machine it is on.

The band tires, which are produced resistant to wear, will never let you down and offer many years of service life.

Automation System

automation system

Professional
Interface

automation system

PLC

automation system

Remote
Connection

automation system

Heat Sensor
Protection (Opitional)

MCC-100 Mobile Cone Crusher is controlled by a full automation system. Thanks to the automation system panel on the machine, the way the machine works is adjusted.

Equipment that forms the basis of the facility such as crusher, vibrating screen, stock belts, feeding bunker are controlled by the automation system.

Crusher and vibrating screen bearings are temperature sensor controlled. In this way, all bearings are protected against unusual heating. The automation system that allows you to use the mobile crushing and screening plant in the most efficient way has been prepared with PLC and serves its users with the most advanced state of technology.

otomatik yağlama

Automatic Lubrication System (Optional)

wobbler feeder

Perfect
Lubrication

Minimum
Oil Usage

vibrating screen

Screen Bearing
Lubrication

The Automatic Lubrication System is the system in charge of sending the grease that is reduced during the use of the crushing and screening plant and that needs maintenance to the relevant part.

The system distributes the grease evenly to all components of the mobile crusher that needs lubrication and provides perfect lubrication.

The automatic lubrication system, which provides ease of maintenance to a great extent, finishes the lubrication process in seconds without the need for manpower and allows the Mobile Crusher Plant to be used in the most efficient way.

The system uses the amount of oil in the most ideal way during lubrication and minimizes the maintenance cost.

Hydraulic System (Optional)

KOL

Hydraulic Control
Arms

bant

Hydraulic
Belts

Hydraulic
Bunker Covers

Hydraulic
Flap

The Hydraulic System enables the feeding bunker covers and stock bands to move without the need for manpower.

The system can be operated using hydraulic control arms and performs on-off operations in a short time.

What are the Adventages of Hydraulic System ?

  • Works without the need for manpower
  • Gives the related parts mobility in a short time.
  • Fast and practical solution.
chassis

Mobile Chassis

IPE 400
Mobile Chassis

chassis

2"
King Pin

Hydraulic
Feet

Brake
Axle System

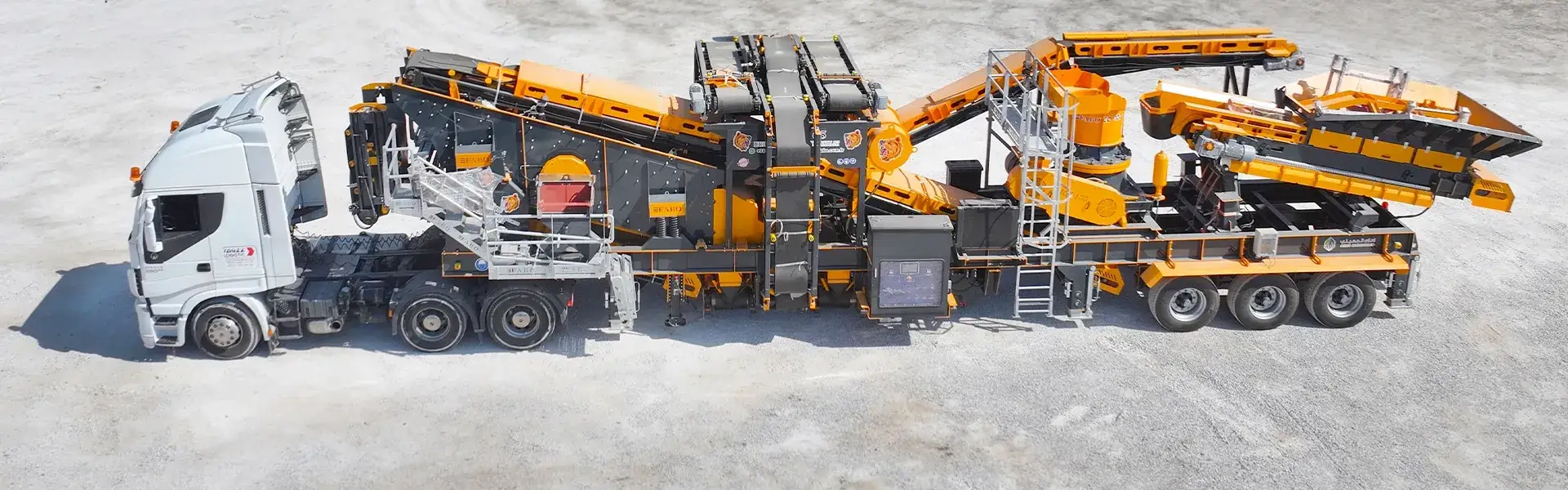

The Mobile Chassis 400 is the system that contains all the equipment in the facility, which is made of IPE material.

The chassis, which has a braked axle system, is moved on 1 axles and 2 wheels.

There is a 2” king pin on the mobile chassis, which can be transported by a truck.

With its hydraulic feet, the plant can easily come to the transport position.
