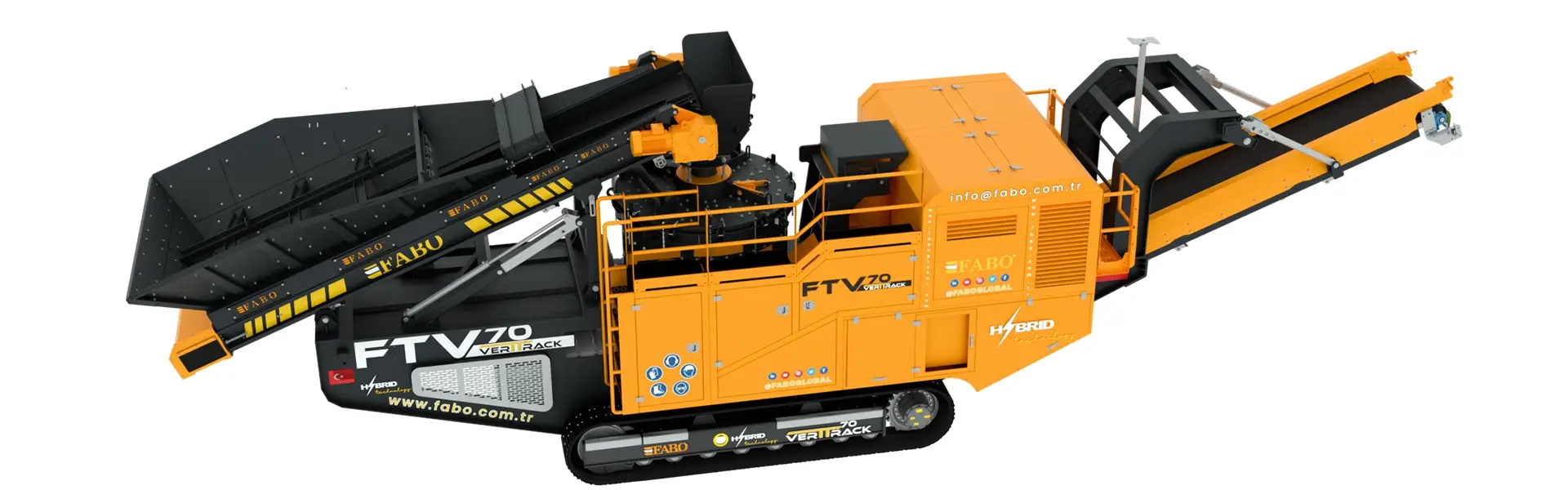

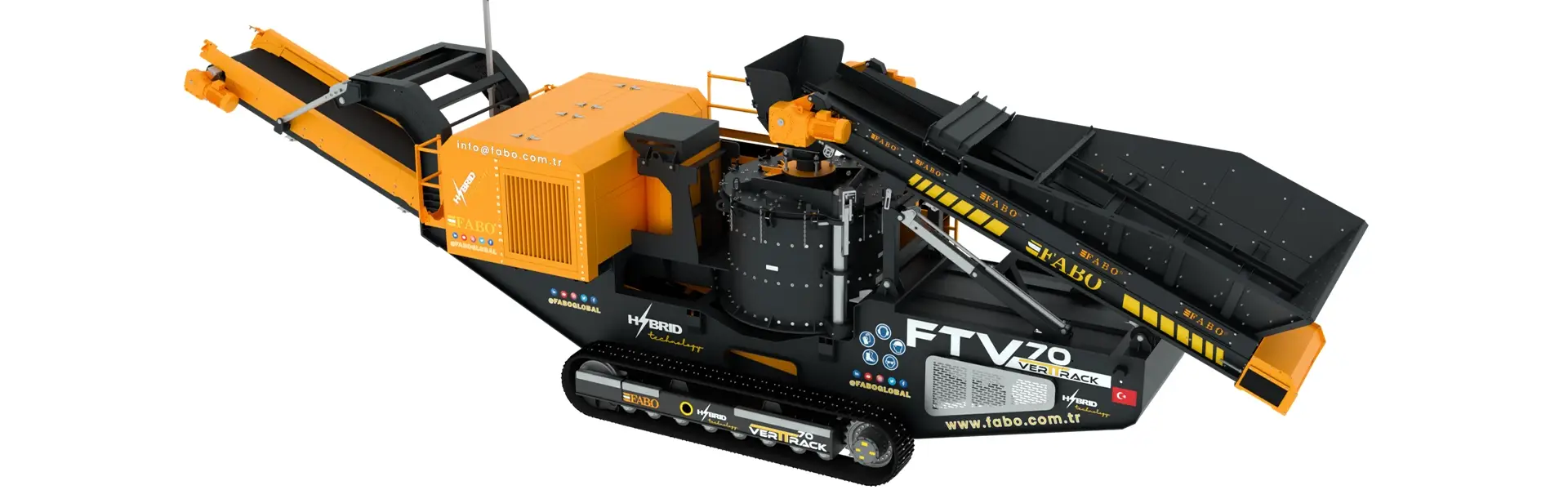

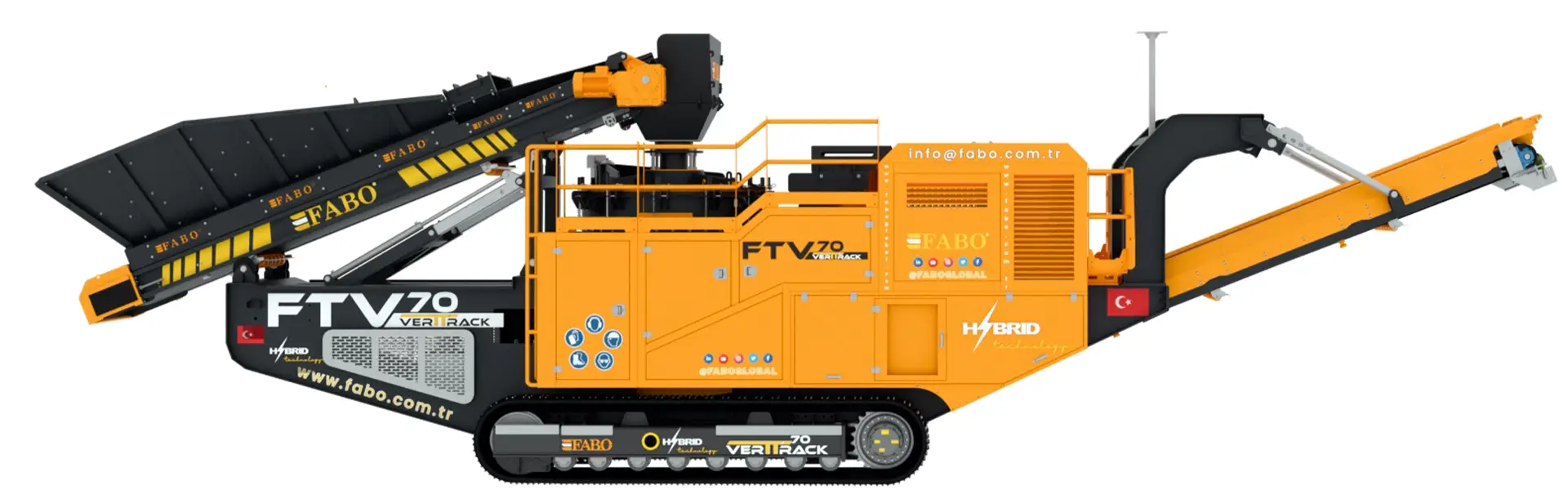

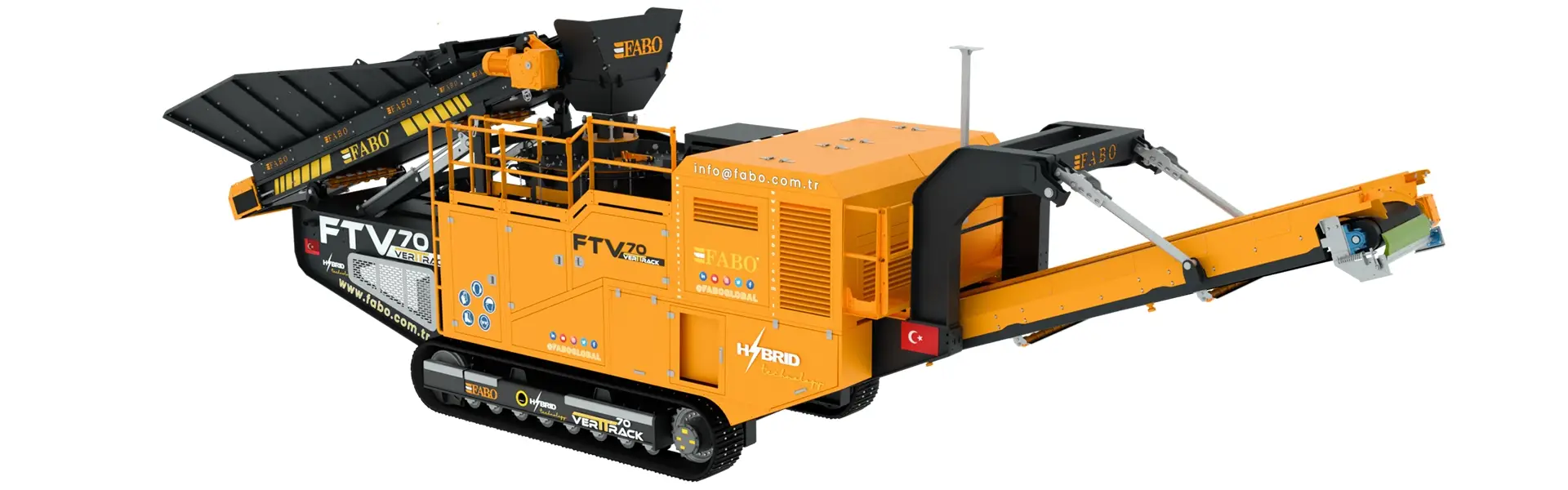

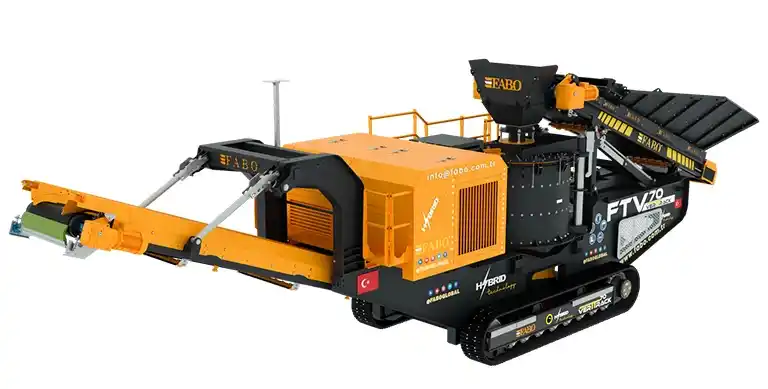

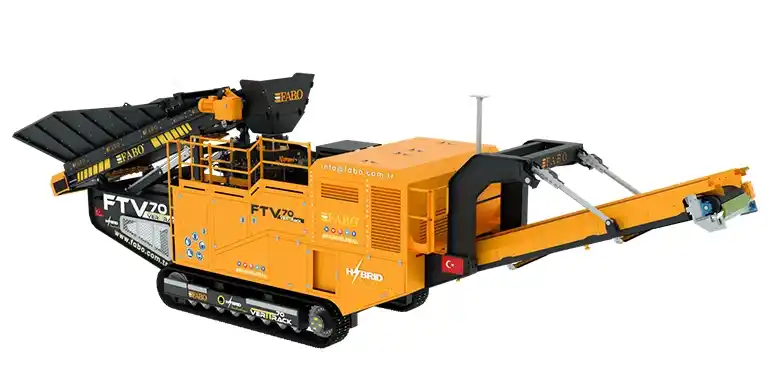

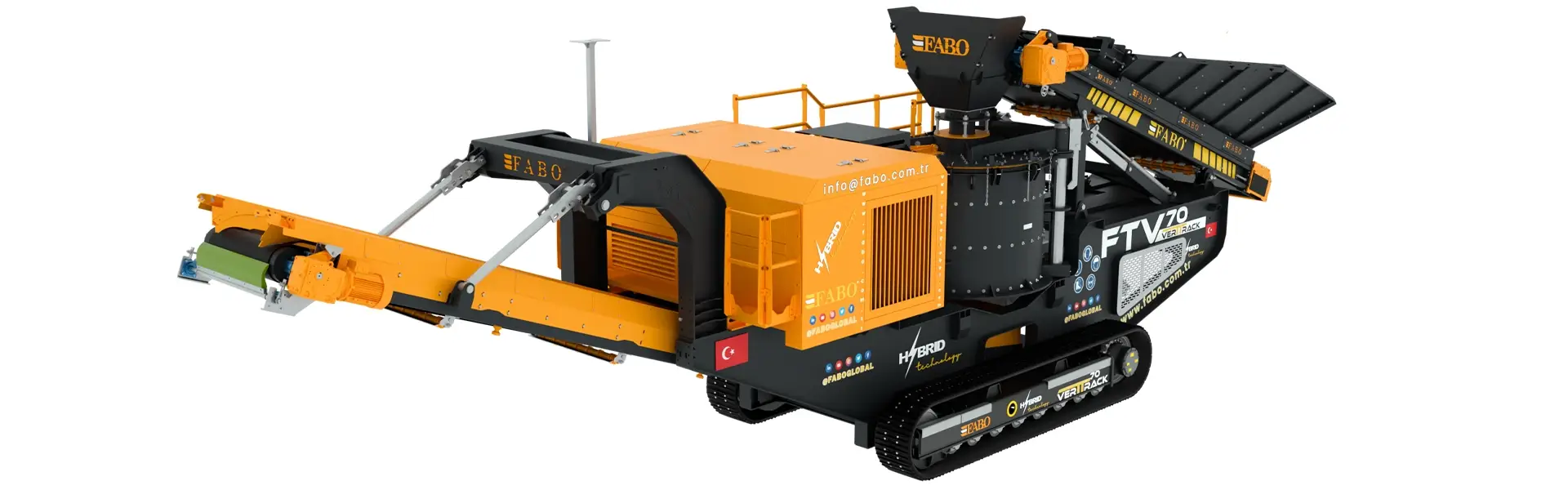

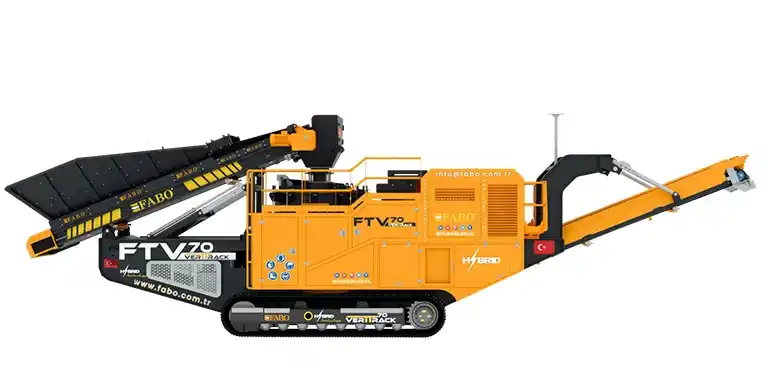

tracked vertical shaft impact crusher
apron feeder

Belt Feeder

Belt
Feeder

flap-system

Coupled
Motors

Folding Type
Bunker Covers

Body
Protection Linings

The Belt Feeder is the system in charge of quickly sending the loaded products to the crusher for the crushing process.

The belt feeder, which has 2 motors and thus gains mobility, has a motor protection system. Thanks to this system, malfunctions that may occur as a result of overheating are prevented.

The working intensity of the Belt Feeder and the crusher is coupled with the automation system.

This feature works in two steps.

Step 1: If the density of the crushed product in the crusher is high, the amperage of the crusher rises, this rise is detected by the automation system and the bunker transfer stops. It prevents product accumulation in the crusher feeding chute. This feature prevents the crusher from being worn out.

Step 2: If the density of the crushed product in the crusher is low, the amperage of the crusher decreases. This decrease is detected by the automation system and bunker transfer increases. The feeding hopper delivers the products to the crusher faster. This feature keeps the production capacity at the maximum level.

vertical shaft impact crusher

Vertical Shaft Crusher

vertical shaft impcact crusher

VSI-700
Vertical Shaft Crusher

vertical shaft impact crusher

Ø 700 mm
Rotor

vertical shaft impact crusher

Easy
Care

vertical shaft impact crusher

35 mm
Maximum Feeding

Vertical shaft crusher is the crusher with the highest rate in 0-5 mm sand production.

It is the ideal solution for breaking hard and abrasive materials such as medium-sized basalt granite.

It provides the highest efficiency in production with its high production capacity and easy maintenance feature.

The crushing process takes place by throwing the products to the linings with the rotor rotating at high speed.
The protection linings covering the inside of the crusher prevent the crusher body from being worn.
The linings are fixed to the body with bolts, so that the linings can be changed in a short time by a personnel.

tracked impact crusher

Stock Belts

bant

Folding Type
Conveyor Belt

Belt
Traverses

Drive
Drums

flap-system

Coupled
Motors

FABO folding type stock conveyor belts are equipments that quickly send crushed products to the stock area.

With its foldable structure, conveyor belts minimizes the dimensions of the machine it is on.

The band tires, which are produced resistant to wear, will never let you down and offer many years of service life.

Separator Belt

seperatör

Separator
Belt

3-Pole
Magnetic Field

Drive
Drums

flap-system

Coupled
Motors

The oversized conveyor belt metal separators consist of the main magnetic block, an endless separator belt, its motor, and the magnetic isolated steel frame as the main components. The steel frame of the MBS series magnetic separators, which are permanent magnet, is magnetically isolated and does not allow unwanted metal to stick around it.

tracked impact crusher

Track System

Track
System

Versatile
Mobility

Double-Stage
Speed Adjustment

500 mm
Track Width

The fundamental element that allows the machine to move is the track system. The tracks, which have a thickness of 500 mm, have versatile mobility capabilities.

They are resistant to challenging terrain conditions. FABO does not neglect the importance of the track system in the crushing plant, carries out various R&D studies to provide its users with maximum compliance with A1 Quality and CE standards.

fabo tracked crusher

Automation System

automation system

Professional
Interface

automation system

PLC

Remote
Control

automation system

Heat Sensor
Protection (Opitional)

The tracked crushing plant is controlled by a full automation system. The machine’s operating mode is adjusted through the automation system panel located on the machine.

Equipment that forms the basis of the machine, such as the crusher, stock conveyors, and feed hoppers, is controlled by the automation system.

The automation system that allows you to use the tracked crushing plant in the most efficient way is prepared with PLC and serves its users with the most advanced form of technology.

Generator

Generator

Low
Fuel Consumption

High
Efficiency

Hybrid
Technology

The generator is the system that provides the power required for the operation of the machine without interruption. The generator system, equipped with hybrid technology, can be used both with diesel fuel and electric energy.

What is the purpose of the hybrid system?

It is often preferred in construction sites where there is no fixed transformer energy or where it is irregularly supplied.

The hybrid system is used to prevent malfunctions that may occur due to irregular electricity flow and fluctuations.

How does the hybrid system work?

The hybrid system, which gets its operating power from diesel fuel, can be easily disabled when desired. Thus, the machine can operate with grid energy in the construction site.

Optionally, the capacity of the hybrid system attached to our machines is determined according to the energy consumption needs of the facilities.

otomatik yağlama

Automatic Lubrication System (Optional)

wobbler feeder

Perfect
Lubrication

Minimum
Oil Usage

Crusher Bearing
Lubrication

The Automatic Lubrication System is a system that is responsible for sending the required grease oil to the relevant parts during the use of the tracked crushing plant and when maintenance is needed.



It ensures flawless lubrication by evenly distributing grease oil to all components of the tracked crushing plant that require lubrication.



The automatic lubrication system provides great ease of maintenance by completing the lubrication process within seconds without requiring human labor, enabling the tracked crushing plant to be used in the most efficient manner.



During lubrication, it uses the optimal amount of oil and minimizes maintenance costs.

Hydraulic System

KOL

Hydraulic Control
Arms

bant

Hydraulic
Belts

Hydraulic
Bunker Covers

The Hydraulic System enables the feeding bunker covers and stock bands to move without the need for manpower.

The system can be operated using hydraulic control arms and performs on-off operations in a short time.

What are the Adventages of Hydraulic System ?

  • Works without the need for manpower
  • Gives the related parts mobility in a short time.
  • Fast and practical solution.
