Crushing Chamber | Maximum Feed | 6 | 8 | 10 | 13 | 16 | 19 | 22 | 25 | 32 | 38 | 44 |
EC | 185 | - | - | - | 69-108 | 75-150 | 80-161 | 86-171 | 91-182 | 104-208 | 115-208 | - |
EF | 35 | The EF 35 is 80% thinner than 5-5.6mm with the 70-90 setting. |
Crusher Type | Cone Crusher |
Power | 300 kVA |
Vibrating Screen Size | 1300x3000 mm |
Weight | 41.000 kg |
Belt Feeder
Belt
Feeder
Coupled
Motors
Folding Type
Bunker Covers
Body
Protection Linings
The Belt Feeder is the system in charge of quickly sending the loaded products to the crusher for the crushing process.
The belt feeder, which has 2 motors and thus gains mobility, has a motor protection system. Thanks to this system, malfunctions that may occur as a result of overheating are prevented.
The working intensity of the Belt Feeder and the crusher is coupled with the automation system.
This feature works in two steps.
Step 1: If the density of the crushed product in the crusher is high, the amperage of the crusher rises, this rise is detected by the automation system and the bunker transfer stops. It prevents product accumulation in the crusher feeding chute. This feature prevents the crusher from being worn out.
Step 2: If the density of the crushed product in the crusher is low, the amperage of the crusher decreases. This decrease is detected by the automation system and bunker transfer increases. The feeding hopper delivers the products to the crusher faster. This feature keeps the production capacity at the maximum level.
Cone Crusher
CC-200
Cone Crusher
Spreader
Cover
185 mm
Feeding Opening
Pinion
Shaft
The power transferred from the engine to the gear shaft is sent to the hub with gears. Thanks to the core and concave inside the crusher, it crushes the stones and breaks them into pieces.

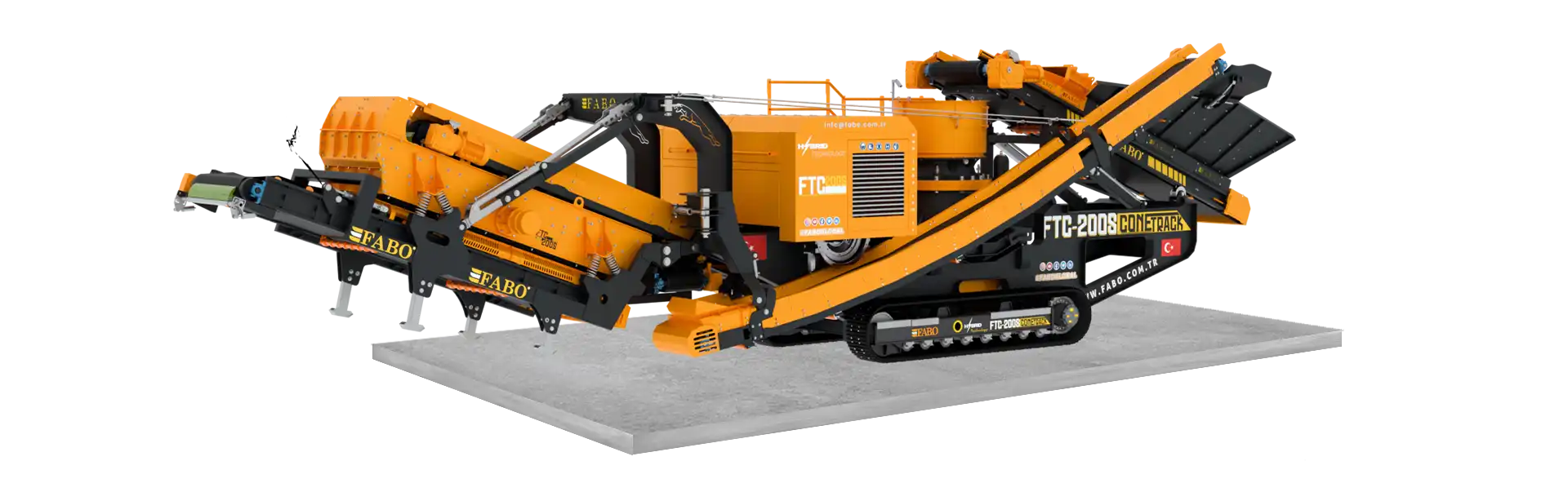

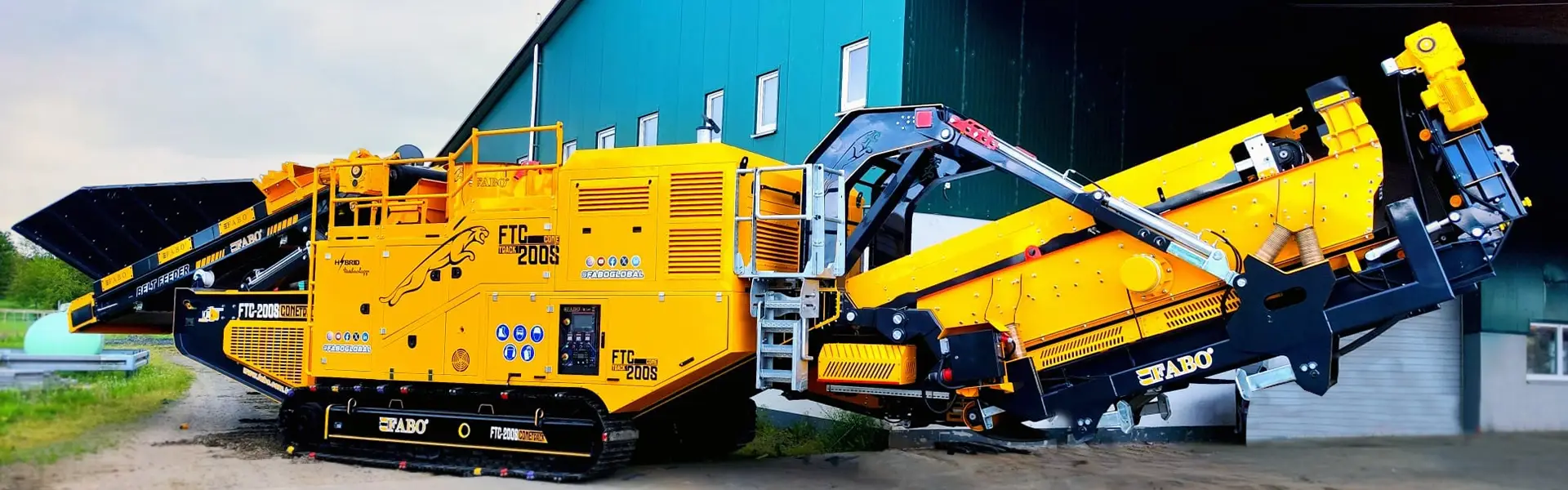

Standing out with its robustness and production capacity, the cone crusher enables the FTC-200 Mobile Crusher to operate at maximum capacity thanks to its high rotor speed and robust gear structure.
Vibrating Screen
1300x3000 mm
Vibrating Screen
Screen
Weight
Durable
Screen Wires
Durable
Steel Springs
Vibrating Screen separates the products crushed in cone crusher in the desired size and sends them to the stock area.
The screening dimensions of the Vibrating Screen are determined according to the customer’s request.
Vibrating screen, which gains the ability to vibrate with durable steel springs, can work uninterruptedly under the toughest working conditions.
Thanks to the screen wires that can be changed in a short time, maintenance, repair and replacement processes are completed in a minimum time.
Stock Belts
Folding Type
Conveyor Belt
Belt
Traverses
Drive
Drums
Coupled
Motors
FABO folding type stock conveyor belts are equipments that quickly send crushed products to the stock area.
With its foldable structure, conveyor belts minimizes the dimensions of the machine it is on.
The band tires, which are produced resistant to wear, will never let you down and offer many years of service life.
Separator Belt
Separator
Belt
3-Pole
Magnetic Field
Drive
Drums
Coupled
Motors
The oversized conveyor belt metal separators consist of the main magnetic block, an endless separator belt, its motor, and the magnetic isolated steel frame as the main components. The steel frame of the MBS series magnetic separators, which are permanent magnet, is magnetically isolated and does not allow unwanted metal to stick around it.
Track System
Track
System
Versatile
Mobility
Double-Stage
Speed Adjustment
500 mm
Track Width
The fundamental element that allows the machine to move is the track system. The tracks, which have a thickness of 500 mm, have versatile mobility capabilities.
They are resistant to challenging terrain conditions. FABO does not neglect the importance of the track system in the crushing screening plant, carries out various R&D studies to provide its users with maximum compliance with A1 Quality and CE standards.
Automation System
Professional
Interface
PLC
Remote
Control
Heat Sensor
Protection (Opitional)
The tracked crushing screening plant is controlled by a full automation system. The machine’s operating mode is adjusted through the automation system panel located on the machine.
Equipment that forms the basis of the machine, such as the crusher, stock conveyors, and feed hoppers, is controlled by the automation system.
The automation system that allows you to use the tracked crushing screening plant in the most efficient way is prepared with PLC and serves its users with the most advanced form of technology.
Generator
Generator
Low
Fuel Consumption
High
Efficiency
Hybrid
Technology
The generator is the system that provides the power required for the operation of the machine without interruption. The generator system, equipped with hybrid technology, can be used both with diesel fuel and electric energy.
What is the purpose of the hybrid system?
It is often preferred in construction sites where there is no fixed transformer energy or where it is irregularly supplied.
The hybrid system is used to prevent malfunctions that may occur due to irregular electricity flow and fluctuations.
How does the hybrid system work?
The hybrid system, which gets its operating power from diesel fuel, can be easily disabled when desired. Thus, the machine can operate with grid energy in the construction site.
Optionally, the capacity of the hybrid system attached to our machines is determined according to the energy consumption needs of the facilities.
Automatic Lubrication System (Opitional)
Perfect
Lubrication
Minimum
Oil Usage
Crusher
Lubrication
The Automatic Lubrication System is a system that is responsible for sending the required grease oil to the relevant parts during the use of the tracked crushing screening plant and when maintenance is needed.
It ensures flawless lubrication by evenly distributing grease oil to all components of the tracked crushing screening plant that require lubrication.
The automatic lubrication system provides great ease of maintenance by completing the lubrication process within seconds without requiring human labor, enabling the tracked crushing screening plant to be used in the most efficient manner.
During lubrication, it uses the optimal amount of oil and minimizes maintenance costs.
Hydraulic System
Hydraulic Control
Arms
Hydraulic
Belts
Hydraulic
Bunker Covers
The Hydraulic System enables the feeding bunker covers and stock bands to move without the need for manpower.
The system can be operated using hydraulic control arms and performs on-off operations in a short time.
What are the Adventages of Hydraulic System ?
- Works without the need for manpower
- Gives the related parts mobility in a short time.
- Fast and practical solution.
