Home Products Compact Concrete Batching plants COMPACT-60 Bucket Type Concrete Batching Plant
agerega bunkeri

Aggregate Bunker

4x12,5 m³
Capacity

Foldable Type
Bunker Covers

Pneumatic
Pistons

Durable
Body Material

Aggregate Bunker stores four different types of aggregates required for concrete production and sends them to the weighing bunker.

Thanks to its durable body sheet, wear and tear that may occur over time is prevented.

There is a 0.37 kW vibro motor that increases fluidity in the sand chamber.

Aggregate Weighing Bunker

Aggregate
Weighing Bunker

S Type
Loadcell

Durable
Body Material

0,37 kW
Vibro Motor

Aggregate weighing bunker weighs the aggregate transferred from the feeding hopper in desired dimensions and transfers it to the mixer feeding conveyor belt. Weighing is done with S type loadcell.

During the transfer of the aggregate to the mixer feeding conveyor belt, vibro motors are activated and the aggregate fluidity is maximized.

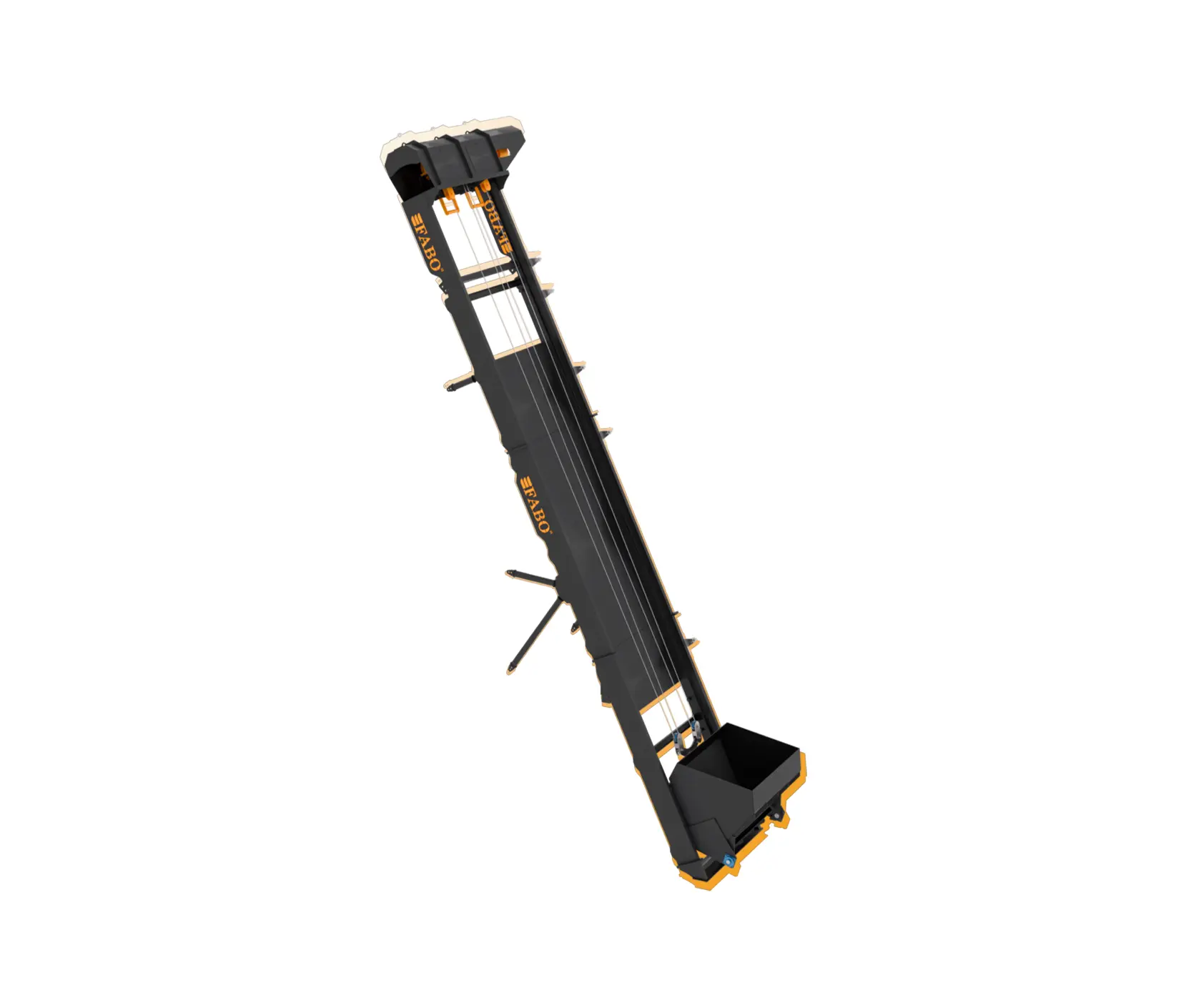

godet transfer system

Bucket Transfer system

Bucket
Transfer system

Carrier
Bucket

Bucket
Movement mechanism

motor

18.5 kW
Motor

The bucket transfer system is the system in charge of sending the aggregate transferred from the aggregate weighing bunker to the double shaft mixer

Weighing Group

Weighing
Group

600 kg
Cement Weighing

250 Liters
Water Weighing

1x30 Liters
Additive Weighing

The weighing group ensures that the additives, water and cement required for concrete production are weighed to the desired extent and transferred to the Twin shaft mixer. Weighing is done with the help of the loadcells.

twin shaft mikser

Twin Shaft Mixer

1 m³
Twin Shaft Mixer

twin shaft mixer

Perfect
Mixture

twin shaft mixer

Body
Protection Liners

motor

2 x 18,5 kW
Motor Power

The Twin shaft mixer is the system in charge of mixing the materials coming from the bunker and weighing group and turning them into concrete.

It achieves a perfect mixture with two mixing arms rotating in opposite directions.

Mixing arms are powered by 2 motors. It can work in the most difficult production conditions and quickly completes the mixture of all concrete types.

Twin shaft mixer arms and body are covered with protection linings. In this way, body wear that may occur over time is prevented.

There are 2 inspection covers on the Twin shaft mixer. In this way, maintenance and cleaning processes are made easier.

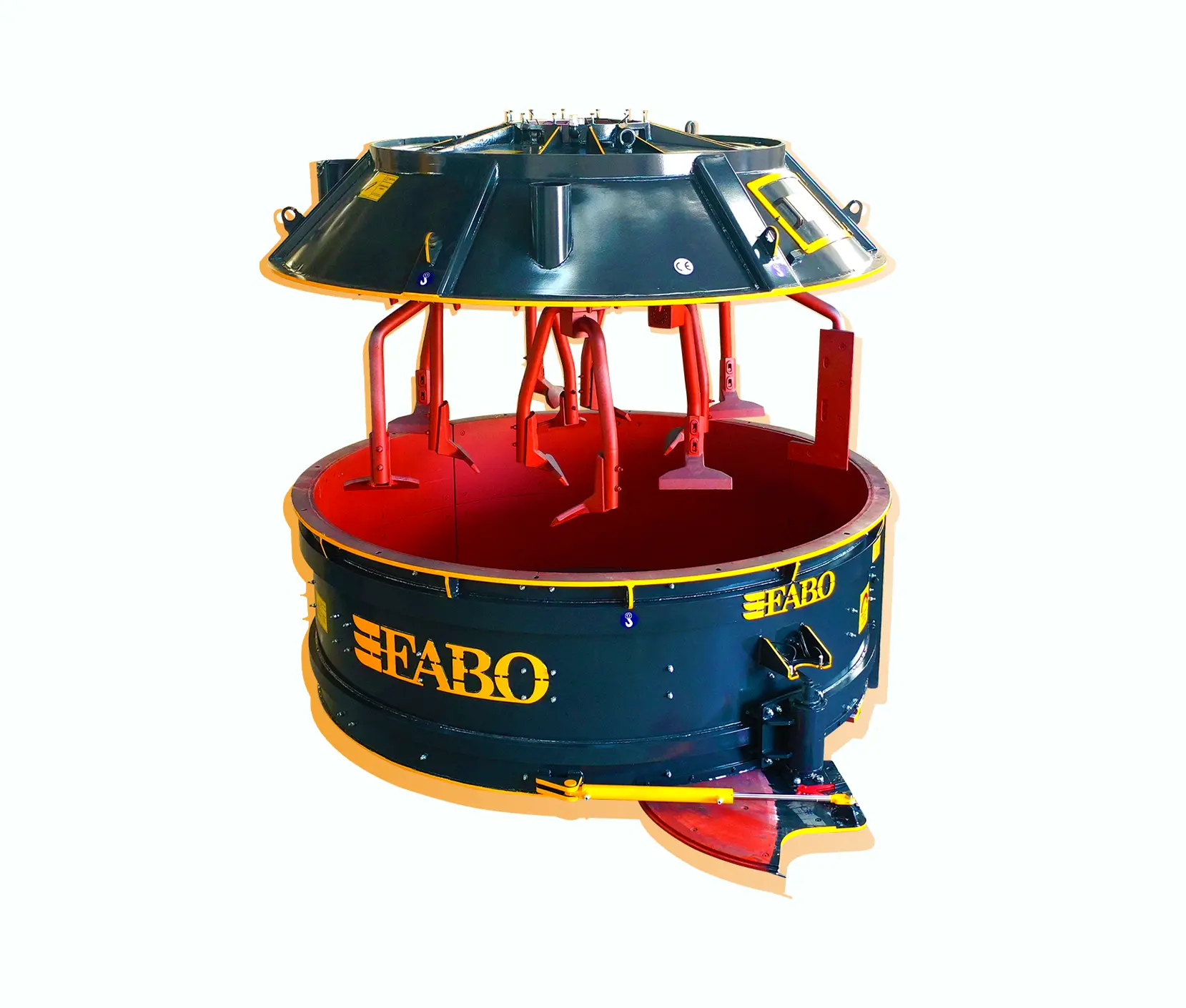

pan mixer

Pan Mixer (Optional)

Pan
Mikser

Kusursuz
Karışım

Gövde
Koruma Astarları

motor

37 kW
Motor Gücü

The pan mixer is the system in charge of mixing the materials coming from the bunker and weighing group and turning them into concrete.

Mixing arms get their power from 1 motor and reducer. It can work in the most difficult production conditions and quickly completes the mixture of all concrete types.

The inner body of the pan mixer is covered with protection linings. In this way, body wear that may occur over time is prevented.

cement silo

Cement Silo

Cement
Silo

Silo
Filters

Level
Sensor

Cement
Screw Conveyor

Cement silo is used to store the cement required for concrete plants. The drying of the cement stored in the cement silos is prevented.

The transfer from the cement silo to the weighing group takes place by the cement screw conveyor.

Automation System

automation system

PLC

automation system

Professional
Interface

automation system

Remote
Connection

Prescription
Concrete Production

The automation system is the system in which all equipment on the concrete plant is controlled. Many features such as weighing aggregate, additive, water and cement required for concrete production, operation of the conveyor belt, and starting of the mixing of the double shaft mixer are controlled by the automation system. The automation system has been designed in accordance with the production of all concrete types.

The automation system has been prepared with PLC by FABO engineers, taking into account all test stages and customer feedback, from the production of the concrete plant to the delivery, and it serves with the most advanced and updated state of technology.

Shipping Method

2-3
Trucks

Highway

Seaway

Railway

Compact Concrete Batching Plant is transported by 2-3 Trucks
